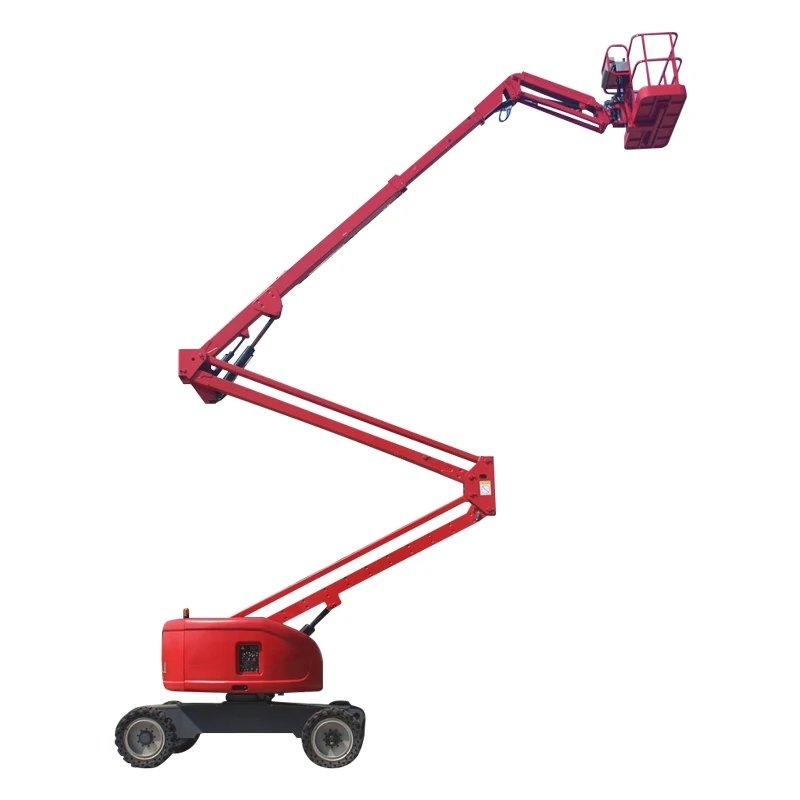

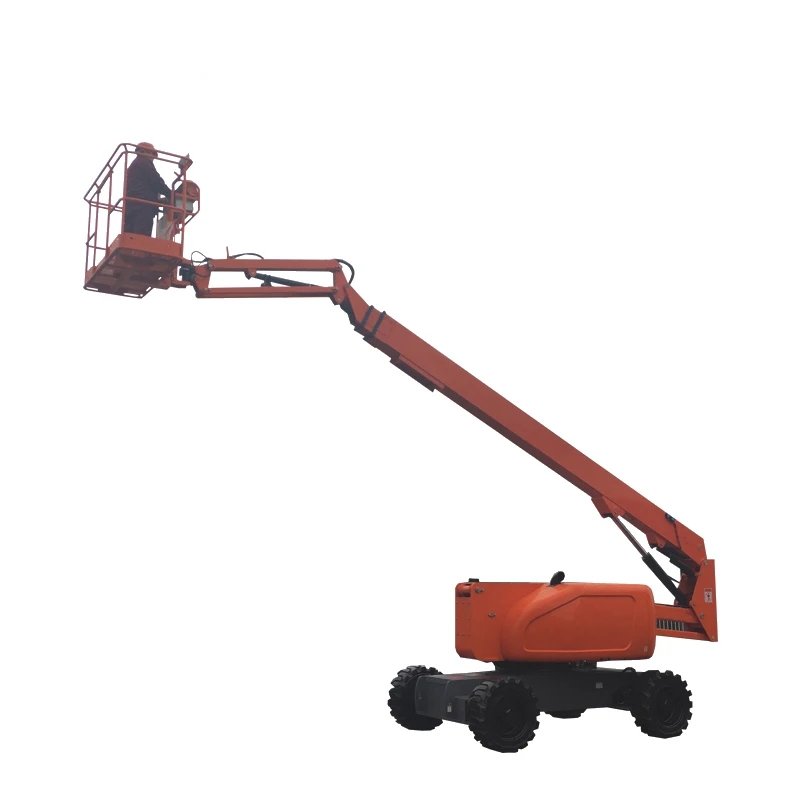

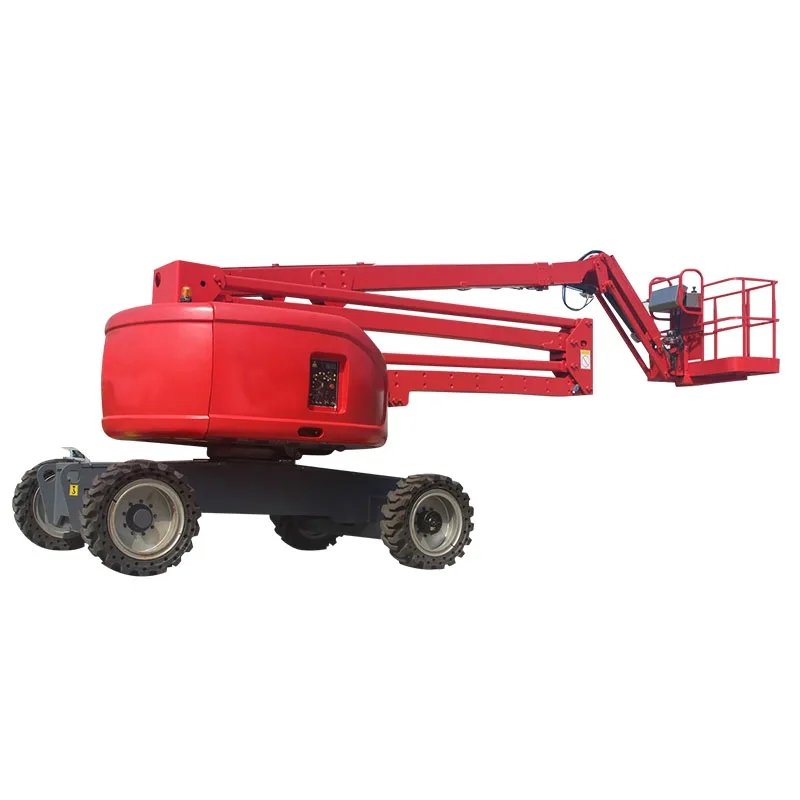

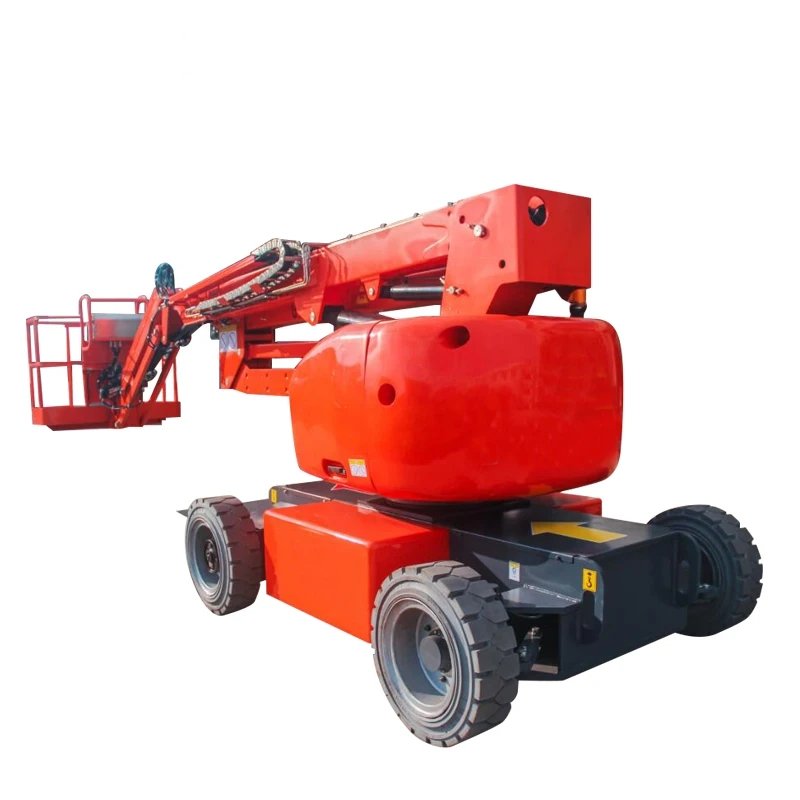

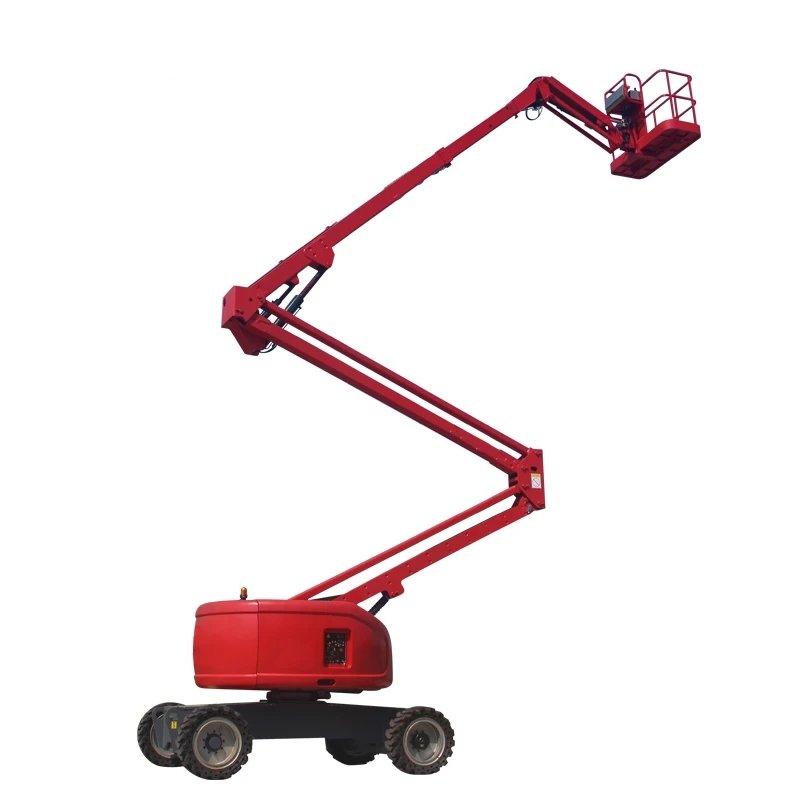

Economical Self-Propelled Cherry Picker Boom Lift

Description

The Self-Propelled Cherry Picker Boom Lift is highly acclaimed for its extensive operational range, making it a premier choice for both indoor and outdoor maintenance activities. It combines superior performance, versatility, and safety features, ensuring it meets the high demands of various sectors.

Specifications

• Maximum Lifting Weight: 1 Ton (2204 lbs)
• Maximum Lifting Height: 2000 cm (65.6 ft)
• Standby Altitude: 200 cm (6.6 ft)
• Type: Scissor
• Installation Method: Aboveground

Key Features of the Self-Propelled Cherry Picker

360-Degree Rotation

Allows for full circular movement, providing unmatched access to various heights and angles, making it ideal for complex maintenance tasks.

Height Adjustable Platform

Adjustable from 6 meters (19.7 ft) to 20 meters (65.6 ft) to accommodate different work requirements, ensuring flexibility and efficiency.

Compact and Maneuverable

Designed for easy navigation and operation in confined spaces, perfect for both indoor and outdoor environments.

Wide Application

Perfectly suited for use in railway stations, ports, public buildings, and numerous other sectors requiring elevated work platforms.

User-Friendly Controls

Simplifies operation, making it accessible even for those new to using such equipment, enhancing productivity and safety.

Sturdy and Durable

Built from high-quality materials to endure tough working conditions, ensuring longevity and consistent performance.

Comprehensive Safety Features

Includes automatic brakes, emergency stop buttons, and overload protection systems to safeguard operators during use.

Versatile Utility

Ideal for a variety of tasks, from building maintenance to complex construction projects, making it a highly valuable tool in any professional setting.

Detailed Specifications

• Platform Size: Customizable
• Working Radius: Variable, dependent on model specifications
• Net Weight: Model-specific
• Overall Width: 1.7m (5.6 ft) to 1.9m (6.2 ft)
• Stowed Height: 2.1m (6.9 ft) to 2.25m (7.4 ft)
• Overall Length: 6.3m (20.7 ft) to 8.2m (26.9 ft)
• Length After Folding Tractor: 4.7m (15.4 ft) to 6.2m (20.3 ft)
• Wind Resistance Level: ≤5
• Rotation: 359 degrees (optional 360 degrees for an additional USD $350)
• Container Loading Quantity: 1 set per 20’/3 sets per 40′ container (varies by model)

Power Options

• AC-electrical/Diesel/Gasoline Power (Single Power)
• DC Battery Power (Single Power)
• AC-electrical + Diesel/Gasoline Power (Dual Power)
• DC Battery + AC/Diesel/Gasoline Power (Dual Power)

MODEL	SPABL-14	SPABL-16	SPABL-18	SPABL-20
Platform height maximum	14m	16m	18m	20m
Working height maximum	16m	18m	20m	22m
Horizontal reach maximum	8m	9.5m	10.4m	12.6m
Crossing height maximum	7.3m	8m	9.2m	9.2m
Platform dimension	1.53×0.76×1.1m	1.8×0.76×1.13m	1.8×0.76×1.13m	1.83×0.76×1.13m
Length-stowed	6.2m	6.8m	8m	9.07m
Width	2.3m	2.3m	2.35m	2.38m
Height-stowed	2.35m	2.38m	2.4m	2.49m
Wheel Base	2.2m	2.2m	2.6m	2.45m
Ground clearance center	0.4m			0.43m
Lift capacity	230kg
Turning radius	5.2m			5.66m
Turntable Swing	360°Continuously
Speed of Turntable Swing	0～0.5rpm
Leveling mode	Automatic
Platform rotation	±80°
Solid tire size	33*12-20
Hydraulic oil tank capacity	100L
Weight	7200kg	7800kg	8000kg	8800kg
Travel speed(stowed)	6.3km/h			4.2km/h
Travel speed(raised or extend )	1.1km/h
Grade ability	30%/40%
Drive and turn mode	4×2×2/4×4×2			4×2×2
Control voltage	12V
Engine	AMERICAN CUMMINS

Usage Instructions for Self-Propelled Cherry Picker

Pre-Operation Checks for Self-Propelled Cherry Picker

• Inspect all parts for visible damage or wear.
• Ensure the hydraulic system is functioning correctly.
• Verify that fuel levels are adequate.
• Check the stability of the ground where the lift will be used.

Operation of Self-Propelled Cherry Picker

• Position the lift on stable ground and extend the outriggers for stability.
• Use the control panel to operate the boom lift, ensuring smooth and controlled movements.
• Utilize the 360-degree rotation to access all necessary areas.
• Always wear appropriate safety gear, including harnesses and helmets, when operating the lift.

Maintenance of Self-Propelled Cherry Picker

• Regularly check hydraulic fluids and fuel levels.
• Inspect and lubricate moving parts periodically.
• Follow the manufacturer’s guidelines for routine maintenance.
• Replace worn-out parts with readily available components from local hardware markets.

Usage Tips for Self-Propelled Cherry Picker

• Safety First: Always adhere to safety protocols and use appropriate personal protective equipment (PPE).
• Training: Ensure all operators are properly trained in the use and safety protocols of the lift.
• Weather Conditions: Avoid using the lift in extreme weather conditions to ensure stability and safety.
• Storage: Store the lift in a dry, secure place when not in use to protect it from the elements and potential damage.
• Regular Inspections: Conduct regular inspections to maintain optimal performance and safety.

Frequently Asked Questions about Self-Propelled Cherry Picker

Where can customers obtain replacement parts if needed? This boom lift utilizes commonly found hardware parts that are available in most local markets, making it easy to source replacements.

How can customers perform repairs on the boom lift? Thanks to its low failure rate, repairs are rarely needed. When necessary, we offer video tutorials and detailed repair instructions to facilitate the process.

What is the duration of the quality guarantee? We provide a one-year warranty. Should the lift malfunction within this period, replacement parts will be provided at no additional cost.

Certifications of the Self-Propelled Cherry Picker

• CE Certified
• ISO Certified

Contact Information

Given the substantial weight and size of our machinery products, we kindly request that you contact us to confirm the exact pricing and shipping costs before making a purchase.

Phone: ‪(717) 925-0587‬

Order Process for Self-Propelled Cherry Picker

Confirm Product, Seaport, and Freight

• Discuss your specific requirements with our sales team.
• Select the destination seaport for delivery.
• Obtain a detailed freight quote based on your location and order size.

Receive Proforma Invoice

A Proforma Invoice detailing the product specifications, total cost, and payment instructions will be sent to you.

Arrange Payment

Initiate production by transferring a 30% down payment. Payments can be made via bank transfer or other agreed methods.

Production and Updates

Production begins upon receipt of the down payment. We provide regular updates, including photos and videos, to keep you informed of progress.

Balance Payment

Upon completion of production, the remaining 70% balance is required before the product is released.

Shipment Arrangement

Once the balance payment is received, the shipment is arranged, and all necessary documents for customs clearance are provided, including the Bill of Lading, packing list, and invoice.

Customs and Pickup

Clear customs at the destination using the provided documents. Assistance from our local shipping agent is available if needed.

Industry-Specific Attributes of the Self-Propelled Cherry Picker

• Warranty: 1 year
• Service Support: 24/7 technical support for troubleshooting
