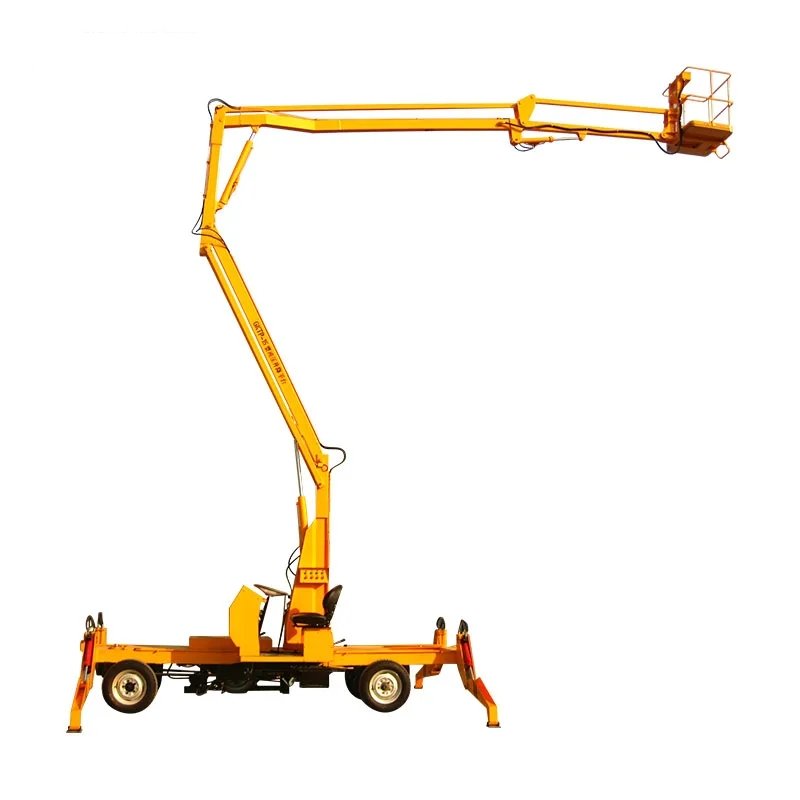

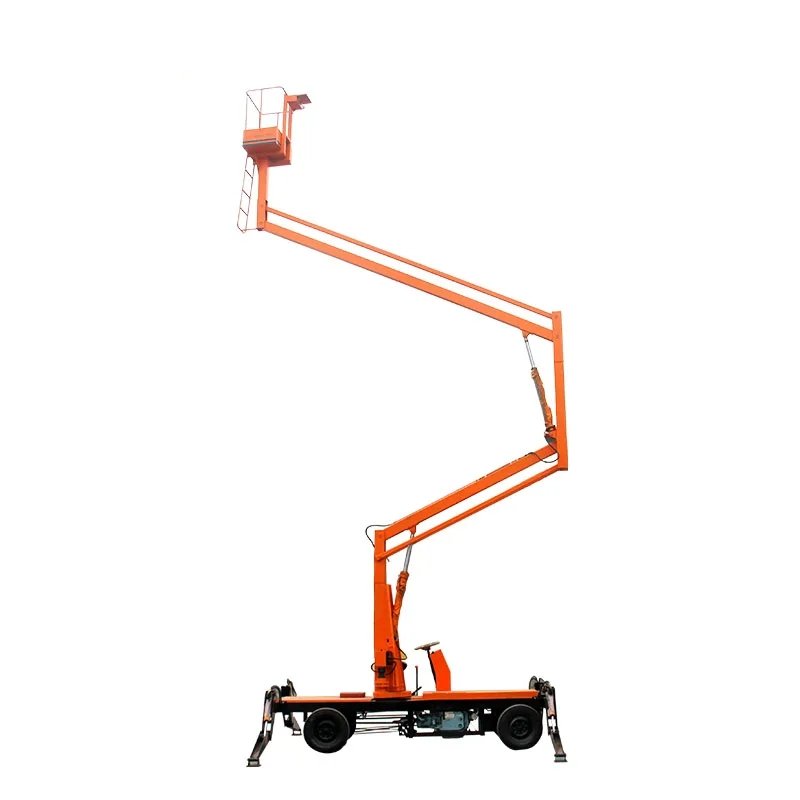

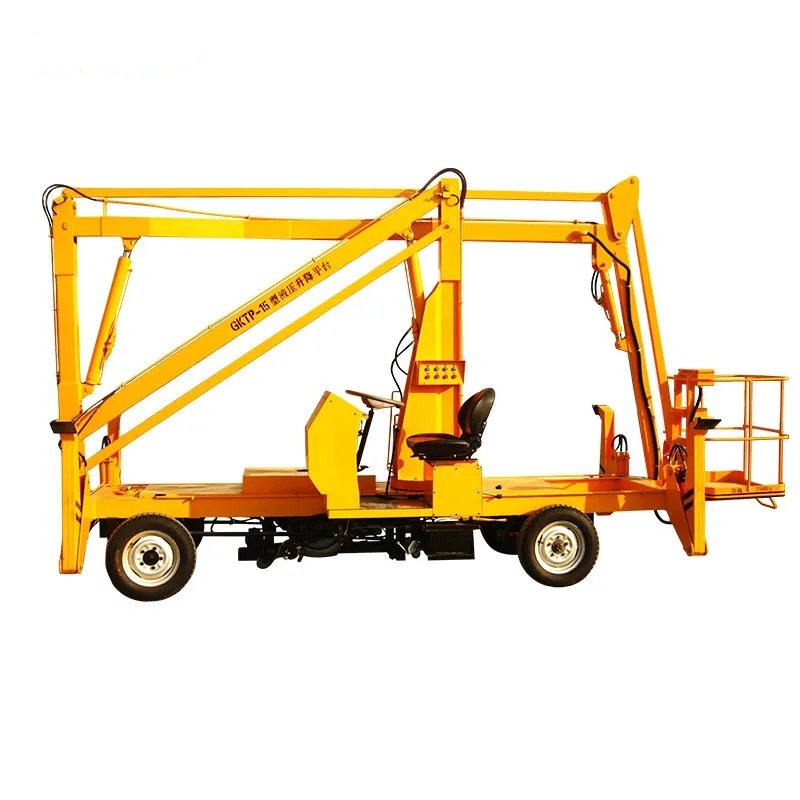

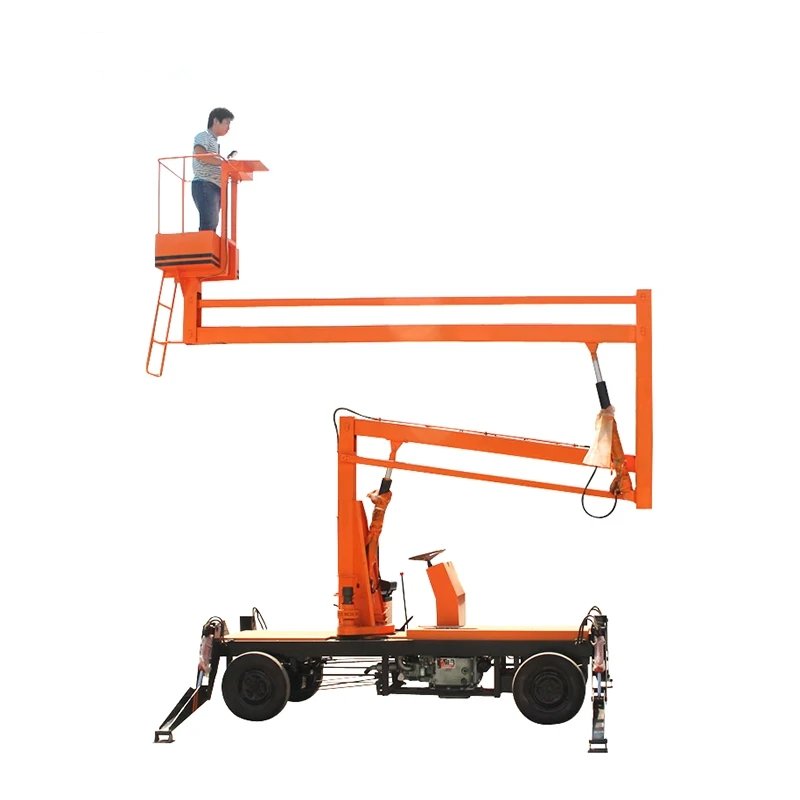

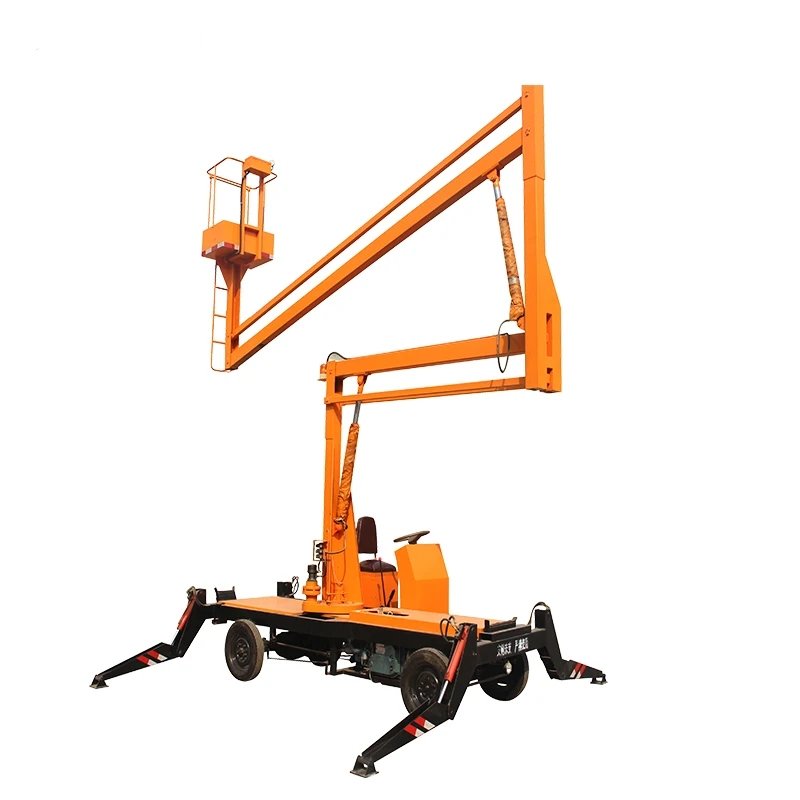

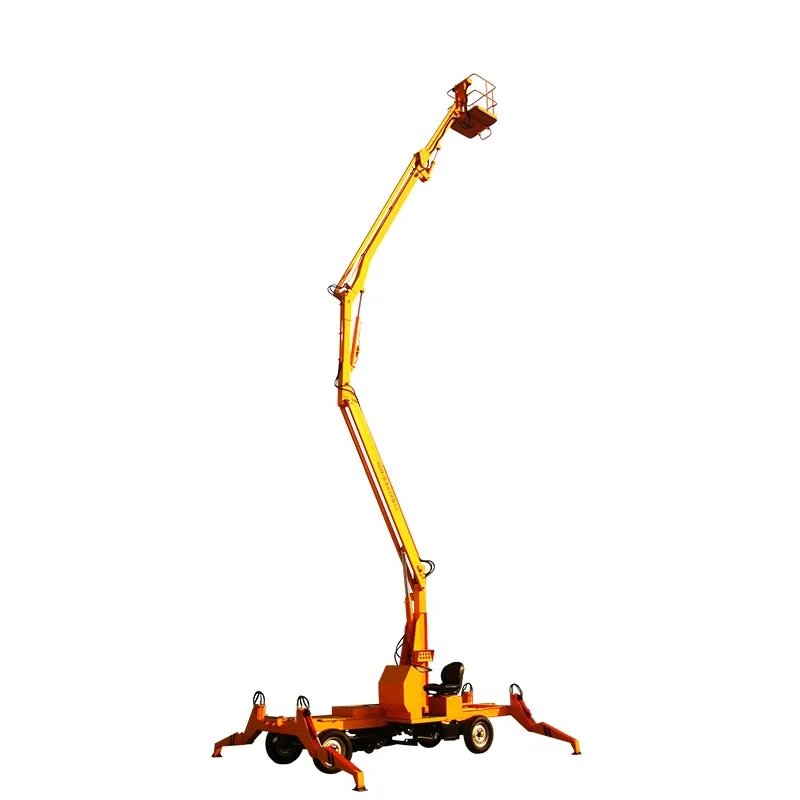

Versatile Hydraulic Towable Man Lift Cherry Picker

The Hydraulic Towable Man Lift Cherry Picker is a cutting-edge aerial work platform, expertly designed for flexibility and efficiency in high-altitude operations. Ideal for both indoor and outdoor applications, this equipment is indispensable for maintenance and other aerial tasks in environments such as railway stations, wharves, public buildings, and industrial facilities. Combining ease of use with top-tier performance, this cherry picker meets the stringent demands of professionals across various sectors.

Specifications of Hydraulic Cherry Picker Boom Lift

• Maximum Lifting Weight: 1 Ton
• Maximum Lifting Height: 2000 cm (65.6 ft)
• Standby Altitude: 200 cm (6.56 ft)
• Platform Height Range: 6m to 20m (19.7 ft to 65.6 ft)
• Weight: 1600 kg (3527 lbs)
• Table Size: 1100 mm x 800 mm (43.3 in x 31.5 in)

Key Features of Hydraulic Cherry Picker Boom Lift

• 360-Degree Rotation: The lift can rotate 360 degrees, providing comprehensive coverage and flexibility for various tasks, ensuring that no area is out of reach.
• Compact and User-Friendly: Designed with a compact structure, this lift can operate in tight spaces and is easy to maneuver, making it ideal for a wide range of applications.
• Versatile Applications: Suitable for various high-altitude work environments, including construction sites, maintenance of public buildings, tree trimming, window cleaning, and more.
• Power Options: Available in multiple power configurations, including AC, DC (Battery), Gasoline, Diesel, and Dual Power (Battery + Diesel/Gasoline), offering versatility and convenience depending on your specific needs.
• Durable Construction: Built with high-quality materials to withstand rigorous use and harsh conditions, ensuring longevity and reliability.
• Easy Transport: The towable design allows the lift to be easily transported from one location to another, making it highly versatile and convenient for various work sites.
• Safety Features: Equipped with safety locks and emergency stop buttons, ensuring the utmost safety during operation.
• Maintenance-Free Bearings: Low maintenance and easy-to-replace components ensure the lift remains in top working condition with minimal effort.

Detailed Specifications by Model

Model	SPBL8	SPBL10.5	SPBL12.5	SPBL13	SPBL14
Max. Working Height(m)	9.5	12	14	14.5	16
Max. Platform Height(m)	8	10.5	12.5	13	14
Platform Size(mm)	850*650*1000	850*650*1000	850*650*1000	850*650*1000	850*650*1000
Load Capacity(kg)       (per customer’s request)	160-200	160-200	160-200	160-200	160-200
Max. Horizontal Reach(m)	2.5	2.5	3.8	4	4.2
Rotation(°)	360	360	360	360	360
Travel Speed(Km/h)	15-30	15-30	15-30	15-30	15-30
Lifting Speed(mm/s)	50-90	50-90	50-90	50-90	50-90
Overall Length(mm)	4100	4100	4800	5100	5100
Overall Width(mm)	1700	1700	2100	2200	2200
Overall Height(mm)	2700	2700	3050	3250	3250
Net weight(kg)	1600	1600	1700	1800	1900

Introduction to Hydraulic Cherry Picker Boom Lift

The Hydraulic Towable Man Lift Cherry Picker is a cutting-edge aerial work platform, expertly designed for flexibility and efficiency in high-altitude operations. Ideal for both indoor and outdoor applications, this equipment is indispensable for maintenance and other aerial tasks in environments such as railway stations, wharves, public buildings, and industrial facilities. Combining ease of use with top-tier performance, this cherry picker meets the stringent demands of professionals across various sectors.

Specifications of Hydraulic Cherry Picker Boom Lift

• Maximum Lifting Weight: 1 Ton
• Maximum Lifting Height: 2000 cm (65.6 ft)
• Standby Altitude: 200 cm (6.56 ft)
• Platform Height Range: 6m to 20m (19.7 ft to 65.6 ft)
• Weight: 1600 kg (3527 lbs)
• Table Size: 1100 mm x 800 mm (43.3 in x 31.5 in)

Key Features of Hydraulic Cherry Picker Boom Lift

• 360-Degree Rotation: The lift can rotate 360 degrees, providing comprehensive coverage and flexibility for various tasks, ensuring that no area is out of reach.
• Compact and User-Friendly: Designed with a compact structure, this lift can operate in tight spaces and is easy to maneuver, making it ideal for a wide range of applications.
• Versatile Applications: Suitable for various high-altitude work environments, including construction sites, maintenance of public buildings, tree trimming, window cleaning, and more.
• Power Options: Available in multiple power configurations, including AC, DC (Battery), Gasoline, Diesel, and Dual Power (Battery + Diesel/Gasoline), offering versatility and convenience depending on your specific needs.
• Durable Construction: Built with high-quality materials to withstand rigorous use and harsh conditions, ensuring longevity and reliability.
• Easy Transport: The towable design allows the lift to be easily transported from one location to another, making it highly versatile and convenient for various work sites.
• Safety Features: Equipped with safety locks and emergency stop buttons, ensuring the utmost safety during operation.
• Maintenance-Free Bearings: Low maintenance and easy-to-replace components ensure the lift remains in top working condition with minimal effort.

Detailed Specifications by Model

Model	Max. Working Height (m)	Max. Platform Height (m)	Platform Size (mm)	Load Capacity (kg)	Max. Horizontal Reach (m)	Rotation (°)	Travel Speed (Km/h)	Lifting Speed (mm/s)	Overall Length (mm)	Overall Width (mm)	Overall Height (mm)	Net Weight (kg)
SPBL8	9.5	8	850x650x1000	160-200	2.5	360	15-30	50-90	4100	1700	2700	1600
SPBL10.5	12	10.5	850x650x1000	160-200	2.5	360	15-30	50-90	4100	1700	2700	1600
SPBL12.5	14	12.5	850x650x1000	160-200	3.8	360	15-30	50-90	4800	2100	3050	1700
SPBL13	14.5	13	850x650x1000	160-200	4	360	15-30	50-90	5100	2200	3250	1800
SPBL14	16	14	850x650x1000	160-200	4.2	360	15-30	50-90	5100	2200	3250	1900

Usage Instructions for Hydraulic Cherry Picker Boom Lift

Pre-Operation Checks

• Inspect all parts for any visible damage or wear.
• Ensure the hydraulic system is fully operational.
• Verify that the battery or fuel levels are adequate.
• Check the stability of the ground where the lift will be positioned.

Operation

• Position the lift on stable ground and extend the outriggers for stability.
• Use the control panel to operate the boom lift, ensuring smooth and controlled movements.
• Utilize the 360-degree rotation to reach all necessary areas.
• Always wear appropriate safety gear, including harnesses and helmets, when operating the lift.

Maintenance

• Regularly check hydraulic fluids and battery levels.
• Inspect and lubricate moving parts periodically.
• Follow the manufacturer’s guidelines for routine maintenance.
• Replace worn-out parts with readily available components from local hardware markets.

Usage Tips for Hydraulic Cherry Picker Boom Lift

• Safety First: Always adhere to safety protocols and use the appropriate personal protective equipment (PPE).
• Training: Ensure all operators are properly trained in the use and safety protocols of the lift.
• Weather Conditions: Avoid using the lift in extreme weather conditions to ensure stability and safety.
• Storage: Store the lift in a dry, secure place when not in use to protect it from the elements and potential damage.
• Regular Inspections: Conduct regular inspections to maintain optimal performance and safety.

Frequently Asked Questions about Hydraulic Cherry Picker Boom Lift

How can customers buy parts if the lift breaks down?

The boom lift uses common hardware parts available in local markets, making it easy to source replacement parts.

How can customers repair the boom lift?

The equipment has a very low failure rate. For repairs, we provide video guidance and repair instructions to assist you in quickly getting the lift back in operation.

How long is the quality guarantee?

One year. If it breaks down within this period, we will send the parts free of charge.

Certifications of Hydraulic Cherry Picker Boom Lift

• CE Certified
• ISO Certified

Contact Information

Due to the heavy weight and large volume of machinery products, please contact us to check the exact price and freight before placing an order.

Phone: ‪(717) 925-0587‬

Order Process for Hydraulic Cherry Picker Boom Lift

Confirm Product, Seaport, and Freight

• Discuss your specific requirements with our sales team.
• Choose the destination seaport for delivery.
• Get a detailed freight quote.

Receive Proforma Invoice

• We will send you a Proforma Invoice detailing the product and total cost.

Arrange Payment

• Transfer a 30% down payment to initiate production.

Production and Updates

• We begin production and provide regular updates with photos and videos.

Balance Payment

• Upon completion, you pay the remaining 70% balance.

Shipment Arrangement

• We arrange the shipment and send you all necessary documents for customs clearance.

Customs and Pickup

• Clear customs at the destination with the provided documents.
• Our local shipping agent can guide you through the process if needed.

Industry-Specific Attributes

• Warranty: 1 year

This detailed product description and instruction guide ensures that you have all the necessary information to make an informed purchase and use the Hydraulic Cherry Picker Boom Lift effectively and safely. By following these guidelines, you can ensure the safe and efficient operation of the Hydraulic Towable Man Lift Cherry Picker, maximizing its benefits for your high-altitude work needs.
