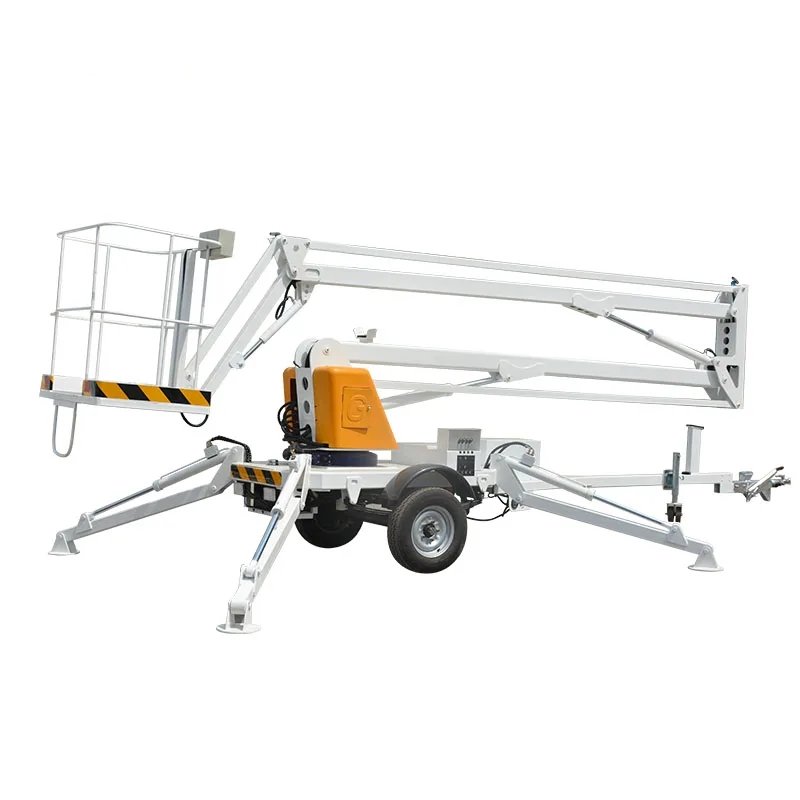

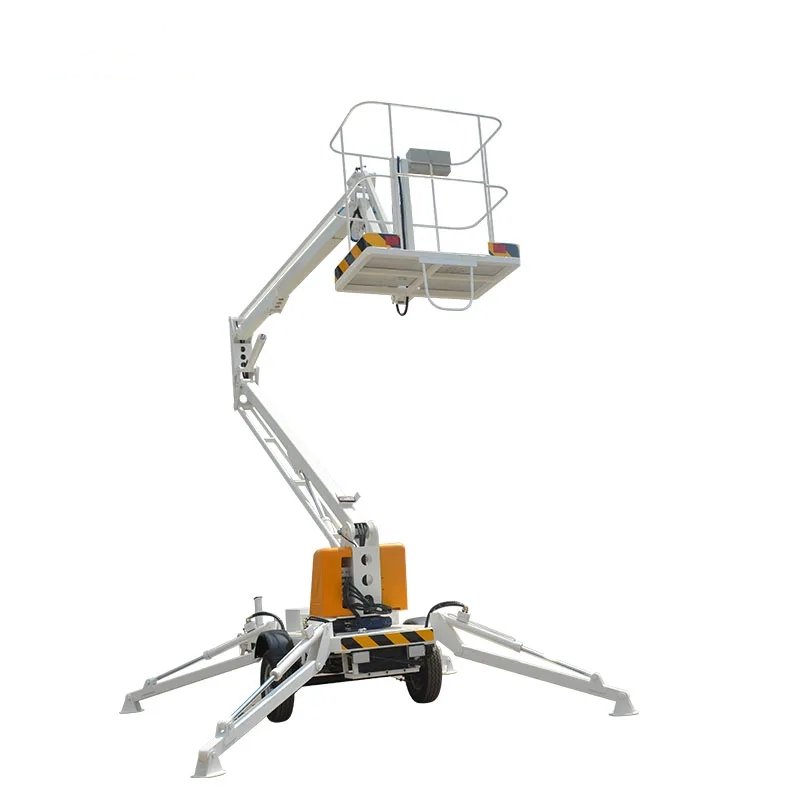

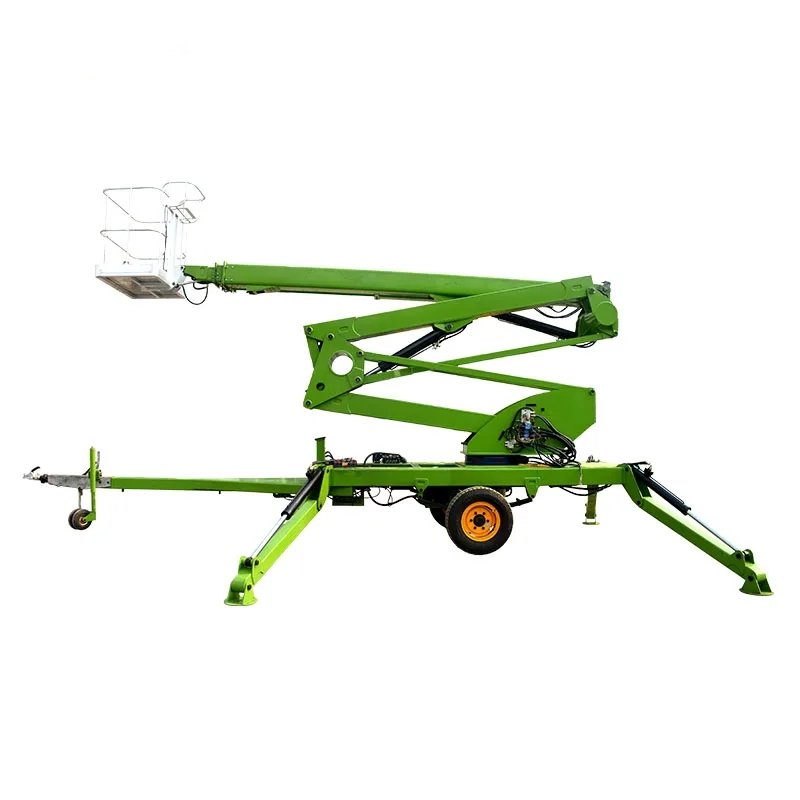

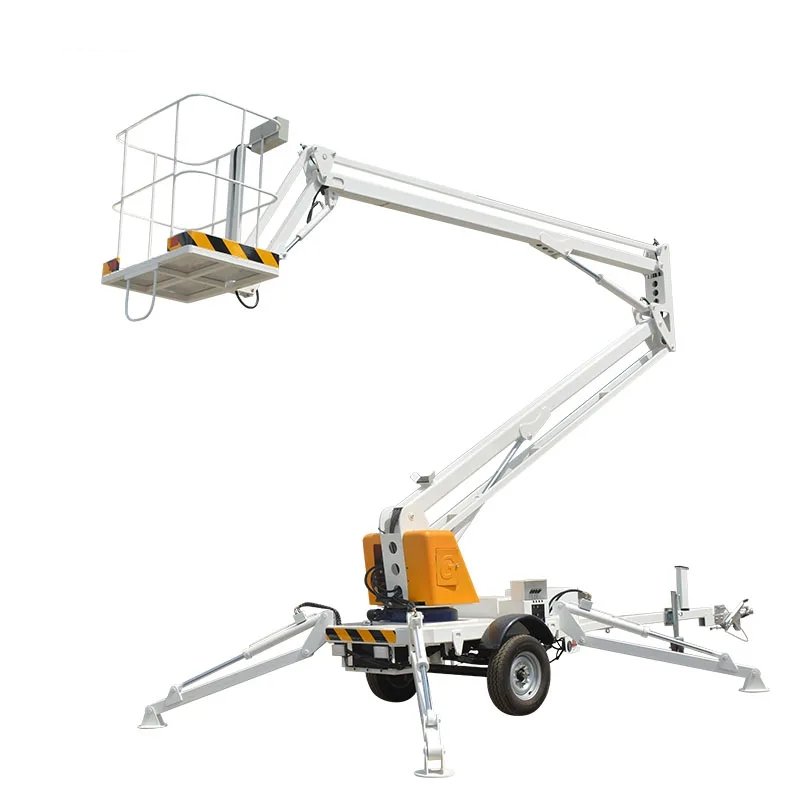

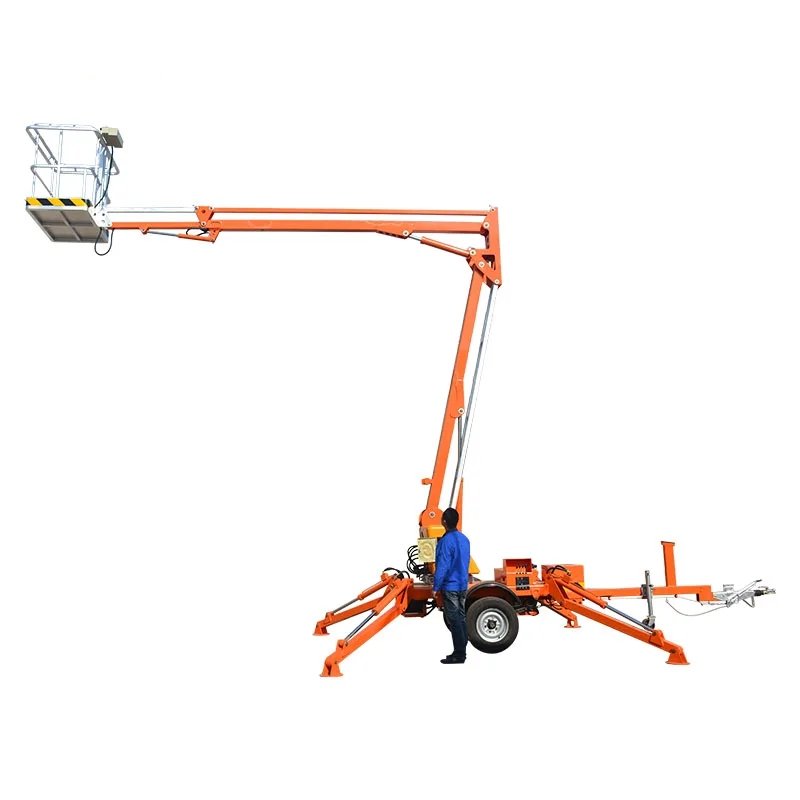

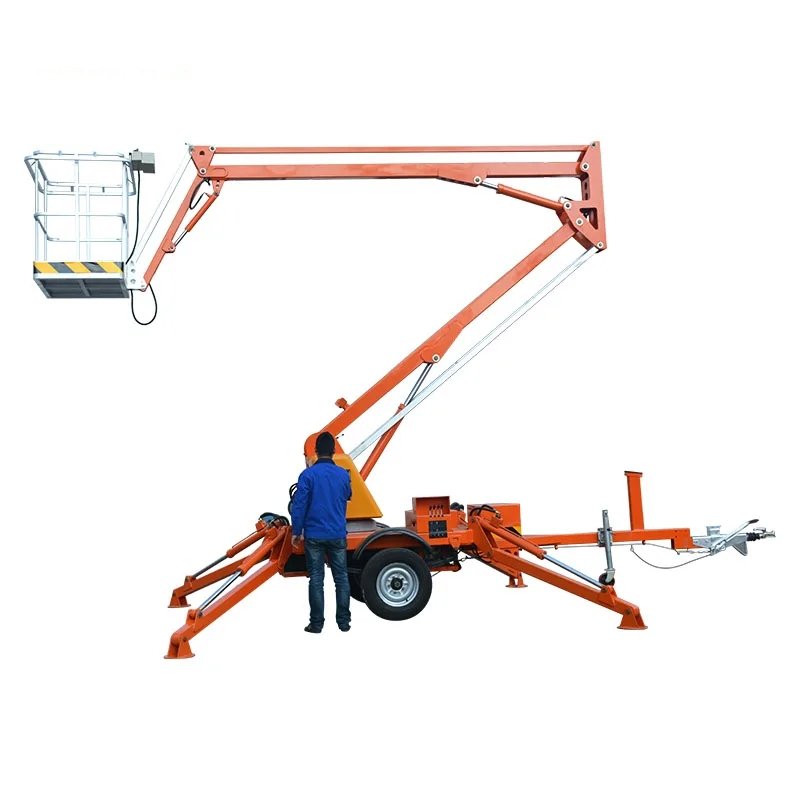

Advanced Cherry Picker Hydraulic Boom Lift

Optimize your high-altitude operations with our state-of-the-art Cherry Picker Hydraulic Boom Lift, engineered for exceptional performance in both indoor and outdoor settings. This lift combines reliability, safety, and user-friendly operation, making it perfect for a wide range of maintenance and construction activities.

Specifications

• Maximum Lifting Weight: 200 kg (440 lbs)
• Maximum Lifting Height: 10,000-20,000 mm (32.8-65.6 ft)
• Type: Scissor
• Installation Method: Aboveground
• Certification: CE

Available Colors

• Yellow
• Orange

Key Features of the Cherry Picker Hydraulic Boom Lift

Extensive Working Range

The Cherry Picke offers a 360-degree aerial rotation capability. The platform height is adjustable from 10m (32.8 ft) to 20m (65.6 ft), ensuring a compact design for easy maneuverability.

Broad Applications

This Cherry Picker is ideal for railway stations, docks, public buildings, and various other industries requiring aerial work.

Adjustable Tilt Angle

The Cherry Picker features touch-screen control for setting and monitoring the tilt angle. The system automatically locks operation if the tilt angle exceeds the set limit.

Touch Screen Interface

Experience simplified operation with the touch-screen panel of the Cherry Picker Hydraulic Boom Lift, allowing for easy control of boom movements and enhanced operational efficiency.

Torsion Axle Stability

The Cherry Picker maintains constant ground contact, ensuring stability even on uneven surfaces.

360° Rotation

With full rotation capabilities, the Cherry Picker Hydraulic Boom Lift allows optimal positioning and access. The basket rotation feature enhances work efficiency without the need to reposition the lift.

Multiple Power Options

Choose from DC, AC, Diesel, Gas, or hybrid power sources to meet your operational needs with the Cherry Picker Hydraulic Boom Lift.

Automatic Braking System

The Cherry Picker ensures safety with an automatic braking system during abrupt stops.

Additional Benefits

• Premium Components: Equipped with Switzerland Bucher DC Pump, Japan Honda Gas Pump, and Germany ALKO Brakes.
• Durable Design: Waterproof and dust-proof electrical cabinet.
• Self-Leveling: Anchor pad for stable positioning.
• Maintenance-Friendly: Hydraulic oil filtration system and accessible maintenance points.
• High Performance: Rotary motor for 360° rotation and extensive horizontal reach.
• Power Options: AC, DC, AC&DC, Diesel, Gas available.
• Bonus Parts: Free quick wear parts for replacement.

Cherry Picker Models

Model Type	TBL-10A	TBL-12A	TBL-14A	TBL-24A
Lifting Height	10M	12M	14M	22M
Working Height	12M	14M	16M	24M
Load Capacity	220KG-300KG	220KG-300KG	220KG-300KG	220KG-300KG
Platform Size	1.2*0.8M	1.2*0.8M	1.2*0.8M	1.2*0.8M
Working Radius	5M	6.5M	8M	11M
Net Weight	1855KG	2050KG	2500KG	5000KG
Overall Size (LWH)	6.651.62.05M	7.751.72.2M	6.51.72.2M	6.52.02.3M
Wind Resistance Level	<=5	<=5	<=5	<=5

Safety Features of the Cherry Picker Hydraulic Boom Lift

• Anti-Burst Valve: Prevents accidents due to hydraulic hose rupture.
• Spillover Valve: Releases pressure when necessary.
• Emergency Descent Valve: Allows safe descent during power failures.
• Anti-Drop Device: Prevents falls during operation.

User Guide for the Cherry Picker Hydraulic Boom Lift

Pre-Operation Checklist

• Inspect all components for damage or wear.
• Ensure the hydraulic system is functioning properly.
• Check fuel levels.
• Verify ground stability.

Operational Steps

• Position the Cherry Picker Hydraulic Boom Lift and extend outriggers for stability.
• Use the touch-screen panel to control movements.
• Utilize 360-degree rotation for comprehensive coverage.
• Always wear appropriate safety gear.

Maintenance Instructions

• Regularly check and replenish fluids and fuel.
• Lubricate moving parts periodically.
• Follow manufacturer guidelines for maintenance.
• Replace parts as necessary using locally available components.

Usage Tips

• Follow all safety protocols.
• Ensure operators are adequately trained.
• Avoid operating in extreme weather conditions.
• Store the lift in a secure, dry location.
• Conduct regular inspections and maintenance.

Frequently Asked Questions

How can customers buy parts if the Cherry Picker Hydraulic Boom Lift breaks down?

Parts are commonly available at local hardware stores.

How can customers repair the Cherry Picker Hydraulic Boom Lift?

With a low failure rate, repair guidance is provided via video and instructions.

What is the duration of the quality guarantee?

The Cherry Picker comes with a one-year warranty with free parts replacement for non-human-caused failures.

Certifications

• CE Certified
• ISO Certified

Contact Information

Given the significant weight and large volume of our machinery products, we recommend contacting us to confirm the precise price and freight charges before placing your order.

Please reach out to our sales team for detailed information and assistance.

Phone: ‪(717) 925-0587‬

Order Process for the Cherry Picker Hydraulic Boom Lift

Confirm Product, Seaport, and Freight

• Discuss requirements with our sales team.
• Select the destination seaport.
• Obtain a detailed freight quote.

Receive Proforma Invoice

• Proforma Invoice with product and cost details provided.

Arrange Payment

• Transfer a 30% down payment.

Production Updates

• Regular updates with photos and videos during production.

Balance Payment

• Pay the remaining 70% balance upon completion.

Shipment Arrangement

• Shipment arranged with necessary documents provided.

Customs and Pickup

• Clear customs with provided documents.
• Local shipping agent guidance available if needed.

Warranty

Warranty: 1 year

This comprehensive product description and user guide provide all the information you need to make an informed purchase and efficiently use the Cherry Picker Hydraulic Boom Lift. Follow these guidelines to maximize the benefits for your high-altitude work needs.
