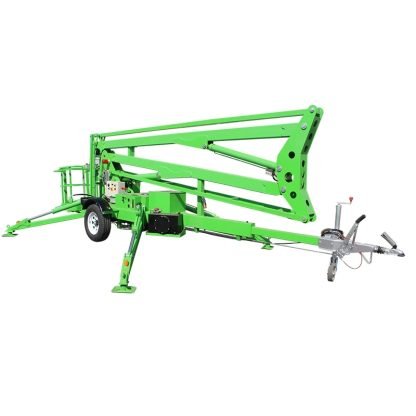

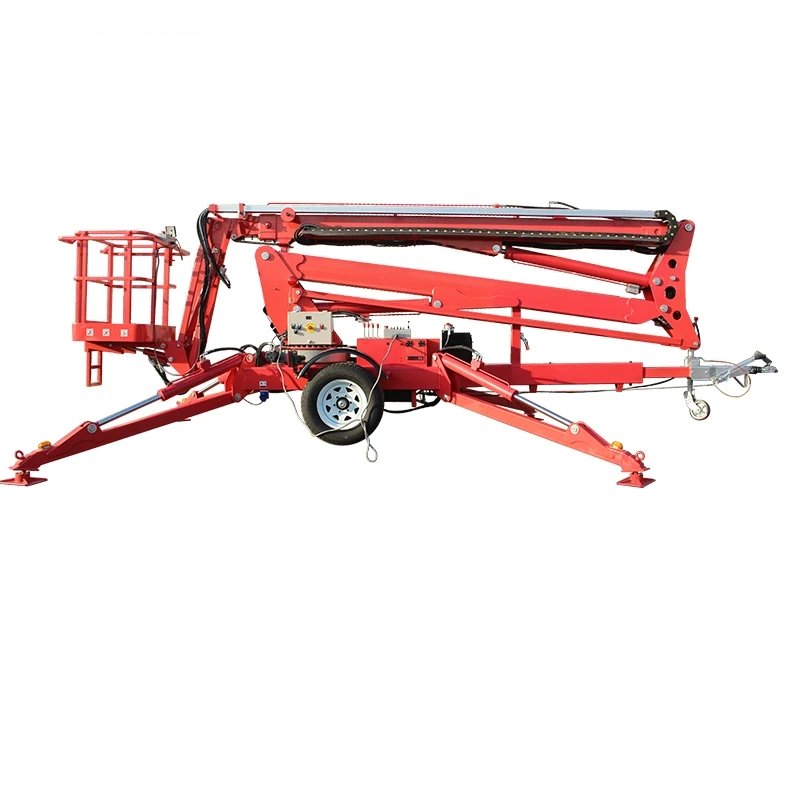

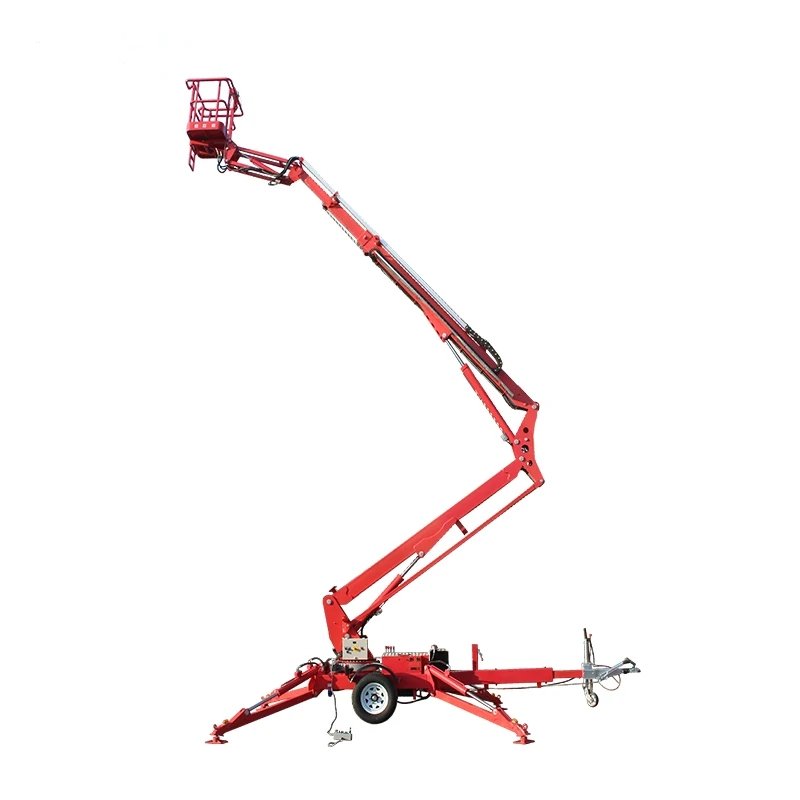

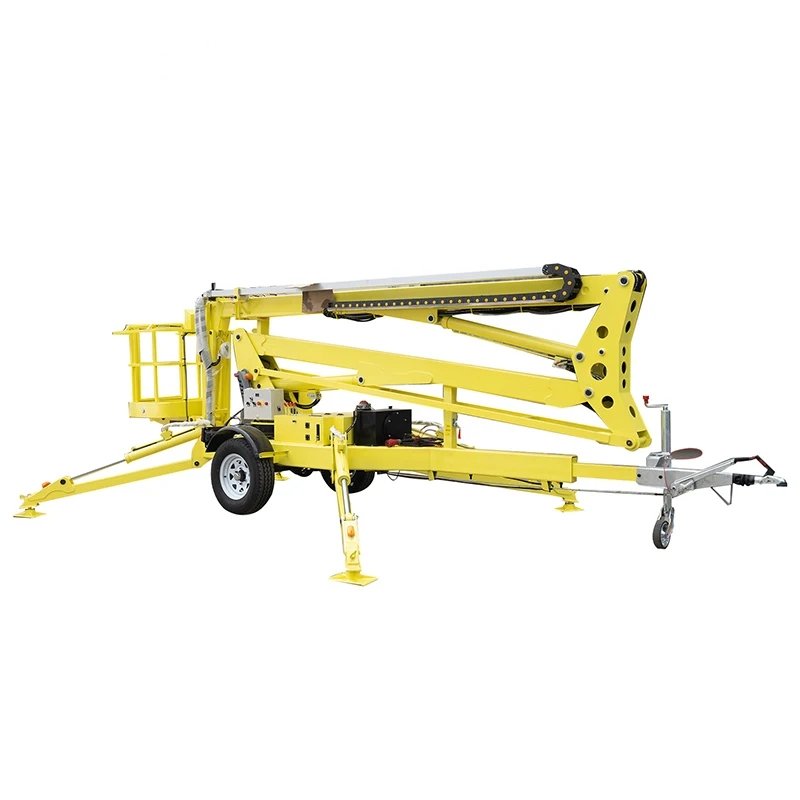

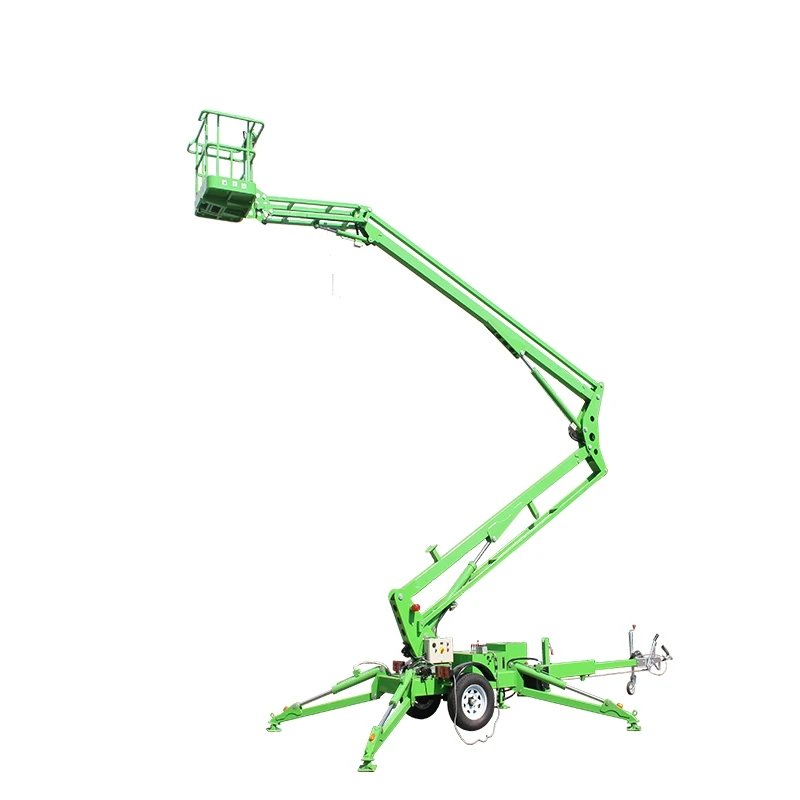

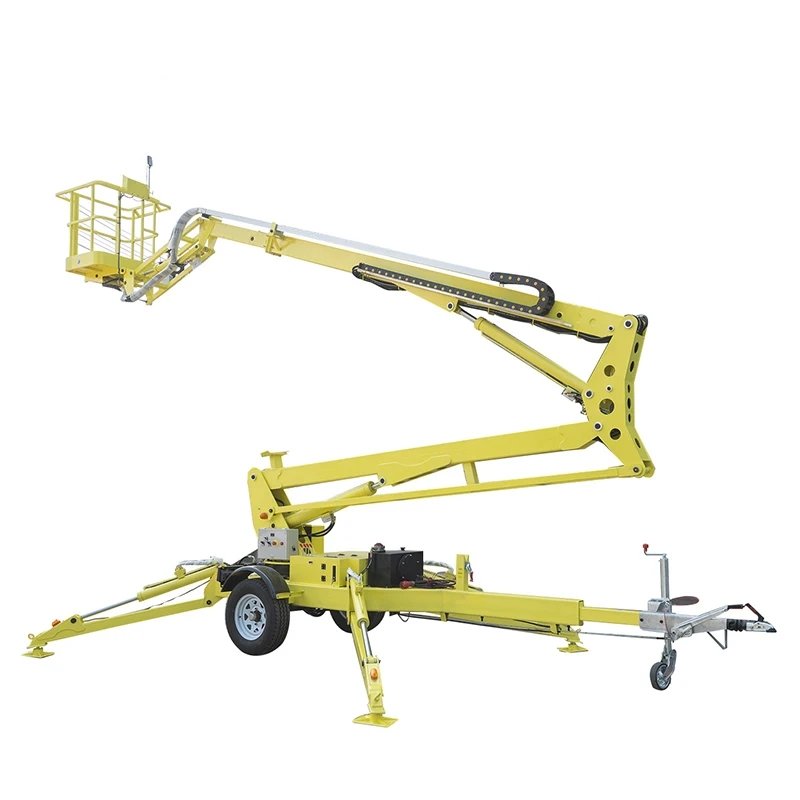

High-Altitude Cherry Picker Boom Lift Platform

Description

Introducing our state-of-the-art High-Altitude Cherry Picker Boom Lift, engineered for optimal performance in a variety of indoor and outdoor maintenance tasks. With its wide operational range and robust construction, this boom lift is an essential tool for high-altitude operations in numerous industries.

Key Features

• Maximum Lifting Weight: 1 Ton
• Maximum Lifting Height: 2000 cm (65.6 ft)
• Standby Altitude: 200 cm (6.56 ft)
• Platform Heights: 6m to 20m
• Rotation: 360 degrees
• Load Capacity: 200 kg (440 lbs)
• Table Size: 1100×800 mm (43.3×31.5 inches)
• Weight: 1600 kg (3527 lbs)
• Power Options:
  • AC (electric connection)
  • DC (battery powered)
  • Gasoline
  • Diesel
  • Dual Power (battery + diesel or battery + gasoline)

Product Description

Our High-Altitude Cherry Picker Boom Lift is designed to meet the demands of both indoor and outdoor high-altitude maintenance work. This versatile and compact lift is perfect for a wide range of applications, from streetlight maintenance to tree trimming and window cleaning. Its ability to rotate 360 degrees ensures comprehensive coverage and accessibility in any environment.

Applications

• Streetlight Maintenance: Efficiently reach and repair streetlights with ease.
• Tree Trimming: Safely trim and maintain trees, including tall palms.
• Window Cleaning: Access high windows for cleaning in commercial and residential buildings.
• General High-Altitude Tasks: Ideal for various maintenance and repair tasks at heights.

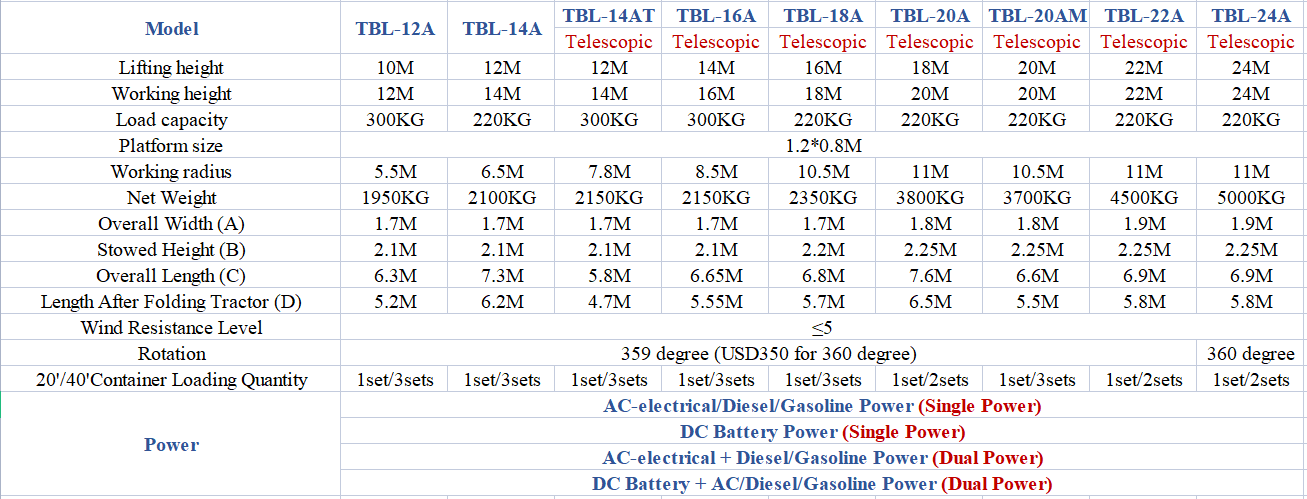

Model	TBL-12A	TBL-14A	TBL-14AT	TBL-16A	TBL-18A	TBL-20A	TBL-20AM	TBL-22A	TBL-24A
			Telescopic	Telescopic	Telescopic	Telescopic	Telescopic	Telescopic	Telescopic
Lifting height	10M	12M	12M	14M	16M	18M	20M	22M	24M
Working height	12M	14M	14M	16M	18M	20M	20M	22M	24M
Load capacity	300KG	220KG	300KG	300KG	220KG	220KG	220KG	220KG	220KG
Platform size	1.2*0.8M
Working radius	5.5M	6.5M	7.8M	8.5M	10.5M	11M	10.5M	11M	11M
Net Weight	1950KG	2100KG	2150KG	2150KG	2350KG	3800KG	3700KG	4500KG	5000KG
Overall Width (A)	1.7M	1.7M	1.7M	1.7M	1.7M	1.8M	1.8M	1.9M	1.9M
Stowed Height (B)	2.1M	2.1M	2.1M	2.1M	2.2M	2.25M	2.25M	2.25M	2.25M
Overall Length (C)	6.3M	7.3M	5.8M	6.65M	6.8M	7.6M	6.6M	6.9M	6.9M
Length After Folding Tractor (D)	5.2M	6.2M	4.7M	5.55M	5.7M	6.5M	5.5M	5.8M	5.8M
Wind Resistance Level	≤5
Rotation	359 degree (USD350 for 360 degree)								360 degree
20’/40’Container Loading Quantity	1set/3sets	1set/3sets	1set/3sets	1set/3sets	1set/3sets	1set/2sets	1set/3sets	1set/2sets	1set/2sets
Power	AC-electrical/Diesel/Gasoline Power (Single Power)
	DC Battery Power (Single Power)
	AC-electrical + Diesel/Gasoline Power (Dual Power)
	DC Battery + AC/Diesel/Gasoline Power (Dual Power)

Usage Instructions for Cherry Picker Boom Lift

Setup

1. Positioning:
   • Position the cherry picker at the desired location, ensuring the area is free of obstructions.
   • Engage the stabilizers to secure the lift.
2. Power Source:
   • Select the appropriate power source based on availability and preference:
     • AC Power: Connect to an electrical outlet.
     • DC Power: Ensure the battery is fully charged.
     • Gasoline/Diesel: Check fuel levels and start the engine.
     • Dual Power: Use the battery for silent operation or switch to gasoline/diesel for extended use.
3. Operation:
   • Use the control panel to operate the lift.
   • Adjust the height by raising or lowering the platform to the desired level.
   • Rotate the platform 360 degrees to achieve the best working angle.

Safety Tips for Cherry Picker Boom Lift

• Always secure the area with appropriate signage and barriers to prevent unauthorized access.
• Ensure all operators are properly trained and familiar with the lift’s controls and safety features.
• Perform a thorough inspection of the equipment before each use to check for any signs of wear or damage.
• Do not exceed the load capacity of 200 kg.

Maintenance

• Follow the manufacturer’s recommended maintenance schedule.
• Regularly check hydraulic fluids and power sources to ensure optimal performance.
• Keep the equipment clean and free from debris to prevent mechanical issues.

Contact Information for Cherry Picker Boom Lift

Due to the heavy weight and large volume of machinery products, please contact us to check the exact price and freight before placing an order.

Phone: ‪(717) 925-0587‬

Order Process

1. Confirm Product, Seaport, and Freight:
   • Discuss your specific requirements with our sales team.
   • Choose the destination seaport for delivery.
   • Get a detailed freight quote.
2. Receive Proforma Invoice:
   • We will send you a Proforma Invoice detailing the product and total cost.
3. Arrange Payment:
   • Transfer a 30% down payment to initiate production.
4. Production and Updates:
   • We begin production and provide regular updates with photos and videos.
5. Balance Payment:
   • Upon completion, you pay the remaining 70% balance.
6. Shipment Arrangement:
   • We arrange the shipment and send you all necessary documents for customs clearance.
7. Customs and Pickup:
   • Clear customs at the destination with the provided documents.
   • Our local shipping agent can guide you through the process if needed.

Industry-Specific Attributes

Warranty: 1 year

This detailed product description and instruction guide ensures that you have all the necessary information to make an informed purchase and use the High-Altitude Cherry Picker Boom Lift effectively and safely.
